STL Repair Online for 3D Printing
Analyze common mesh problems, clean duplicate and zero-area faces, then compare the result before continuing to your slicer.
Open an STL to check the mesh
We will inspect the geometry before any repair step begins.
Know What the Analyzer Is Reporting
TEACHING SAMPLE · ACTUAL CHECK
Open boundaries
The opening on top has four exposed edges. A boundary edge belongs to only one triangle; four edges here surround one hole.
What to do nextIf this opening is unintended, fill it in a mesh editor, export the STL and check it again here.
Download this sample STLFROM IMPORT TO RECHECK
Check it. Repair it. Check it again.
Follow one STL with a hole through the whole workflow. These are actual screenshots, with the original and repaired files available below.
- 01
FOMRIX · LOCAL FILE

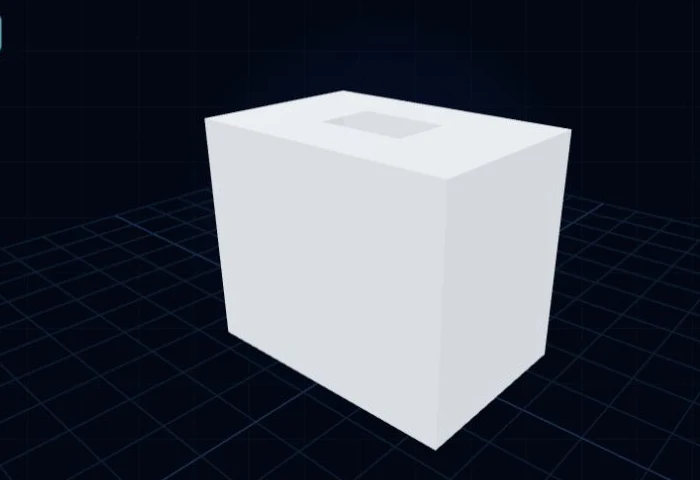

Open your STL
Choose or drop an STL into the tool. Rotate the preview to inspect the overall shape; your file stays in your browser.
- 02
FOMRIX · MESH CHECK
Find what needs attention
Click Analyze STL and record the warnings. This sample reports 4 open boundary edges around one visible hole.
- 03
FORMWARE · EXTERNAL SOFTWARE

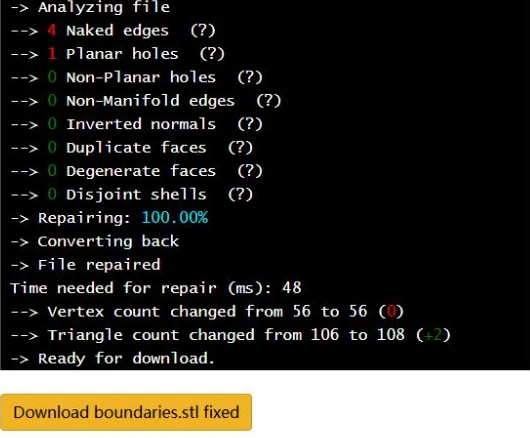

Repair and export a new STL
For this hole, we uploaded the sample to Formware and downloaded the fixed STL. It added two triangles to close the opening. Keep your original file.
Open Formware repair - 04
BACK IN FOMRIX

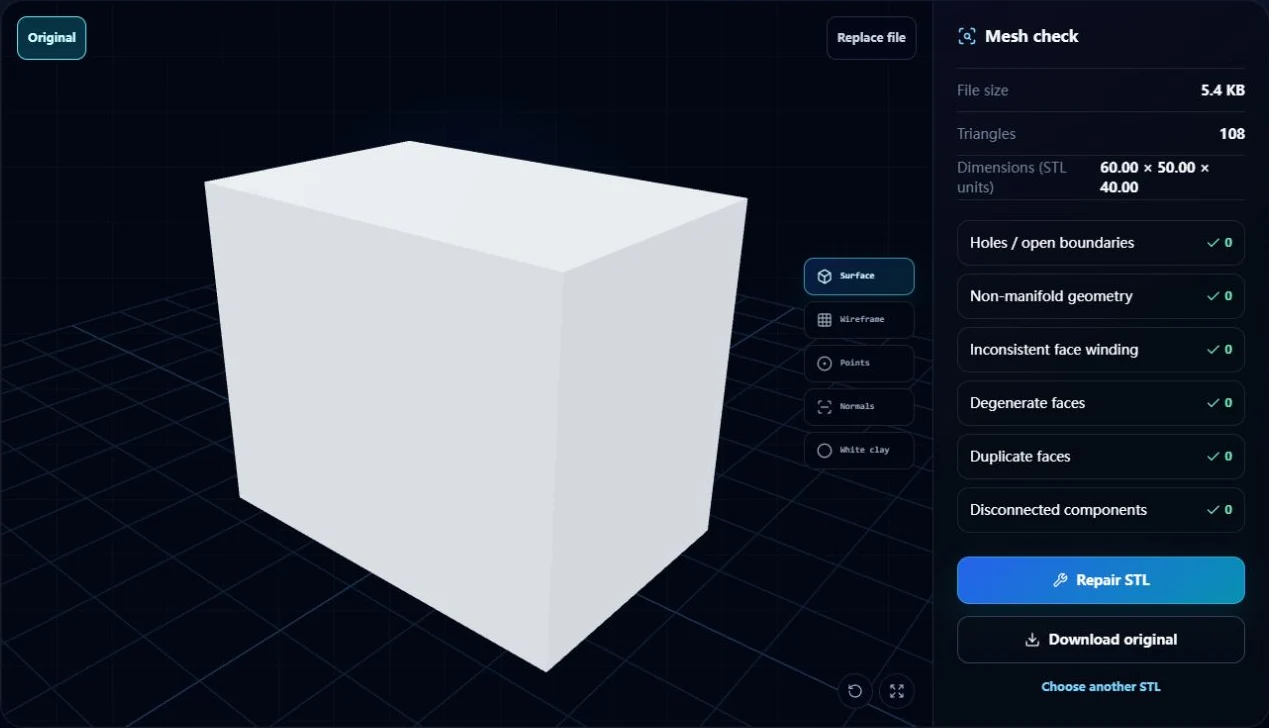

Bring it back and check again
Choose Replace file, open the repaired STL, then analyze again. This sample now has 0 reported issues. Check the shape here and the layers in your slicer.
Check your repaired STL
VERIFIED ON THIS SAMPLE
Open boundary edges: 4 → 0
106 → 108 triangles. Dimensions unchanged: 60 × 50 × 40 STL units.
Teaching mesh, not an AI generation or a print test. Fomrix checks and cleans files locally; it does not fill holes. The hole in this example was closed in Formware, an external service you upload to separately. You can use a desktop mesh editor instead. Zero reported issues does not guarantee printability: check scale, wall thickness and layers in your slicer.
STL Repair Questions
Clear answers to common questions about generating, inspecting, repairing, and downloading 3D assets with Fomrix.
Have other questions?
Contact Fomrix support
Need guidance on a specific reference image, custom formats, or print prep? Reach out anytime.
support@fomrix.comWhat does an online STL mesh repair tool do?
Fomrix checks the mesh, removes duplicate and zero-area faces, then checks the cleaned STL again. Open boundaries, non-manifold edges, inconsistent face winding and disconnected parts remain visible for review.
How do I fix an STL file before 3D printing?
Analyze the mesh, record the reported boundaries and non-manifold edges, run only the available cleanup, compare the changed geometry, then verify the repaired 3D-printing mesh in a slicer.
Can every STL file be repaired automatically?
No. Basic cleanup removes duplicate and zero-area faces. It does not fill holes or resolve intersections, wall thickness or all non-manifold geometry. Use a slicer or a dedicated mesh editor for remaining issues.
Will STL repair change the shape of my model?
Cleanup removes duplicate and zero-area faces while keeping the other vertex positions. Always compare the cleaned result with the original and inspect it in a slicer before printing.
Does STL repair fix wall thickness?
Not necessarily. Wall thickness, structural strength, tolerances and printer-specific constraints are separate design considerations.
Can I repair an AI-generated STL?
Yes. AI-generated geometry is a common reason to run mesh checks before printing, especially when the model was inferred from a single image.
Should I still preview the repaired STL in a slicer?
Yes. The slicer preview is an important final check because it shows how the printer will interpret the repaired geometry.
Inspect the Mesh Before You Print
Analyze common STL issues, review the cleanup result, and keep the original file available for comparison.
